Utilizing koyeb to deploy high-performance nodes for free

[suyongkang]

Important Notice: Do not attempt to use this guide for any malicious purposes.

VIP Please Stop: xhj37:

Original Article: https://susu.vn.kg/40/2025

Advantages of this tutorial:

• Zero Code: No coding required, no need to go to the black box to type commands.
• No Syntax Errors: Using Base64 encoded configuration injection, solves syntax errors caused by punctuation marks.
• Pure and Stable: Based on the official teddysun/xray Docker image, no backdoors, 24-hour background operation.

Preparation:

• A registered Koyeb account. [Registration link:]
• A pair of hands (only need to copy and paste).

Step 1: Create a Docker Service

• Log in to the Koyeb console, click the Create Service button in the top right corner.
• Select deployment method (choose Docker, icon is a small whale).
• Docker image (image address):
  • Fill in the input box: teddysun/xray
• Instance type (configuration):
  • Choose CPU EcO’s Micro (Free), this is permanently free.
• Regions (region):
  • Only select Washington, D.C. or Frankfurt (do not select multiple).

Step 2: Inject Core Configuration (most critical step)

Scroll down and find Advanced (advanced) or click Deployment to expand settings. We need to modify the startup entry and startup command.

• Find the Override Entrypoint (override entry point) input box, fill in: /bin/sh
• Find the Override Command (override command) input box, copy and paste the following code:

-c "echo eyJpbmJvdW5kcyI6W3sicG9ydCI6ODAwMCwicHJvdG9jb2wiOiJ2bGVzcyIsInNldHRpbmdzIjp7ImRlY3J5cHRpb24iOiJub25lIiwiY2xpZW50cyI6W3siaWQiOiJkZTI0OWQ2Yi0wMDAwLTExMTEtMjIyMi0zMzMzNDQ0NDU1NTUifV19LCJzdHJlYW1TZXR0aW5ncyI6eyJuZXR3b3JrIjoid3MiLCJ3c1NldHRpbmdzIjp7InBhdGgiOiIvIn19fV0sIm91dGJvdW5kcyI6W3sicHJvdG9jb2wiOiJmcmVlZG9tIn1dfQ== | base64 -d > /etc/xray/config.json && /usr/bin/xray -config /etc/xray/config.json"

• This command will automatically generate a UUID of de249d6b-0000-1111-2222-333344445555 VLESS configuration.

Step 3: Set Port

In the Ports (port) settings area:

• Port: Change to 8000 (not 443, consistent with our configuration).
• Protocol: Select HTTP.
• Public path: Keep default /.

Step 4: Deployment and Verification

• Click the Deploy button at the bottom of the page.
• Wait 1-2 minutes, observe Build Logs.
• When you see Service Status turn green Healthy, and the log shows Xray … started, it means deployment is successful!
• Copy your domain name (e.g. my-site.koyeb.app) without https://

Step 5: Client Connection (must-read avoidance guide)

This is the final step for many crashes. Please strictly follow the parameters below, and any mistake will not connect.

Open your V2RayN / Shadowrocket / NekoBox:

• Address (Address): Your application name.koyeb.app (do not add https://)
• Port (Port): 443 (note! Fill in 443, do not fill 8000)
• Protocol (Protocol): VLESS
• User ID (UUID): de249d6b-0000-1111-2222-333344445555
  (This is the one we wrote in the second step command, must fill this)
• Transmission protocol (Network): ws (WebSocket)
• Path (Path): /
• Transmission security (TLS): Enable / TLS
• Skip certificate verification: false (recommended to close)

Common Error Warning:

About “Flow Control”

In NekoBox or V2RayN, Flow Control must be left blank! Must be left blank!

• Error: Select xtls-rprx-vision (this will cause vision: not a valid supported TLS connection error).
• Correct: Leave it blank and don’t select anything.

With this, a permanently free, Docker containerized deployment of VLESS node is set up. It does not require a keep-alive script and is very suitable for use as a backup node.

[oiimxy]

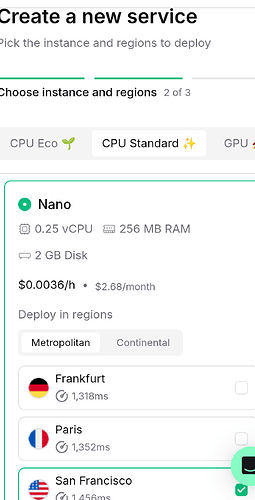

Instance type (Configuration) this can’t be found website is different

[suyongkang]

Choose this CPU.

[oiimxy]

It looks like your account has been banned Your webpage display is different from mine

[suyongkang]

[linxone2895 (Carlistano)]

Great plan! I’ll try it out when I have the time ~

[Arvin_Leung]

My account has been locked out.

(Note: I translated “封了” to “locked out”, assuming it’s referring to a locked account. If it’s referring to a physical lock, a more accurate translation would be “locked”.)

[cs9u]

Good, good

(Note: The translation is a direct translation of the Chinese phrase, but in English, a more idiomatic translation would be “Great, great” or “Excellent, excellent”. However, I’ve followed the instruction to preserve the original structure and formatting.)

[kefeng]

Impressive

Note: The term “牛逼” is a Chinese idiomatic expression that roughly translates to “impressive” or “awesome.”

[Nova]

Let’s take a look

[azhaoyihao]

Koyeb: What is it? Never used it

Koyeb is a serverless platform.

[mp69]

Registration Link?

Please note that the translation is not entirely accurate as the original phrase is a question, and the translation is more of a statement. A more accurate translation would be Where is the registration link?

[tvbox]

Using what others said on the forum, it seems that using this will get you banned.

[suyongkang]

I don’t have an account bound, I used a temporary email, it’s still okay, I don’t know what rule it’s based on::

[suyongkang]

This account doesn’t cost anything, I just found it browsing Google last night and I tried it out for fun:.

[suyongkang]

I’ve been eaten , I’m now topping up

[zhmsun (zerot.c)]

It seems like I need to bind a card, is it a node problem

[unpack]

Thanks very much, I’ll take a look and try it out.

[ketto]

It’s great, thanks for sharing, I’ll give it a try when I have time.

[suyongkang]

注册送了10美金，我选的是每月5点多美元的日本、新加坡节点 我准备用完，再去用免费计划试试
